WAVERIDER 505

2024 - Gemini X – Waverider 505

ORDER A NEW CUSTOM BOAT TODAY

*****POPULAR COLOURS*****

- Ice white with white hull/deck and signature black detailing – SOLD (taking new orders now)

- Carbon Black Tubes with Grey Hull/Deck – SOLD (taking new orders now)

- Light Grey Tubes with White Hull/Deck – SOLD (taking new orders now)

  45 YEARS OF QUALITY BOATS AND INNOVATION

SECURE ONE OF OUR STOCK BOATS OR BUILD YOUR OWN CUSTOM DREAM BOAT TODAY

EXPERIENCE THE GEMINI DIFFERENCE - Gemini RIBs have set the benchmark for inflatable boats since 1979.  You can be assured your getting a quality product from a world class manufacturer.

Our brand new 2024 latest generation Gemini WR505 with industry leading Yamaha F60 4-stroke outboard has been built to tackle the toughest Australian conditions in comfort.

Ready to take on Sydney Harbour right now as a premium day boat or super yacht tender. The Gemini X Waverider 505 with ultra-modern hull shape has taken the boating market by storm. On the water the Gemini Waverider 505's stepped-volume hulls are unsurpassed for their soft ride, dryness, safe predictable handling and stability. They have the highest level of standard specification throughout and the tubes are constructed of world leading ORCA Hypalon, renowned for superior life in Australia’s harsh environment. You can’t buy anything better.

VIEW BOATS FOR SALE ONLINE NOW (click links below)

DID YOU KNOW WE ALSO TRANSPORT AUSTRALIA WIDE?

CUSTOM ORDER OR MORE INFO - PLEASE CONTACT US

STANDARD FEATURES

ENGINE AND STEERING

  • Latest Yamaha 60hp 4 Stroke

  • Digital Engine multifunction gauge

  • Water separating fuel filter, housing and primer bulb

  • 13.5” Premium stainless steel wheel and steering knob

  • Premium Bay Star Hydraulic steering by Seastar

  • 25L under console Yamaha fuel tank , fully plumbed (option for larger/2nd tank)

CONSOLES AND SEATING

  • Commander 6000 molded console

  • Complete with windscreen, stainless steel grab rail and large internal dry locker

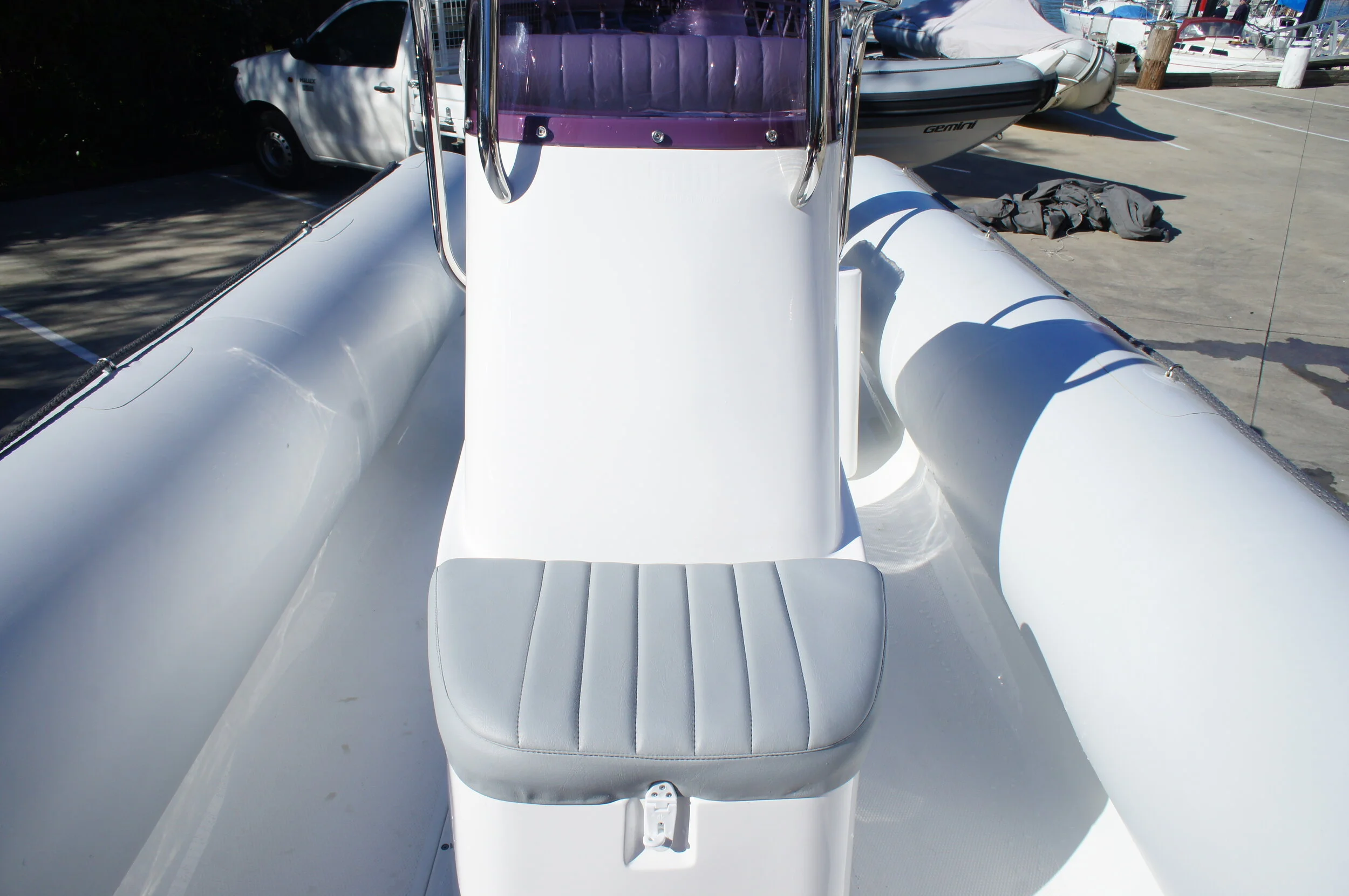

  • Cushioned bow seat on forward side of console with storage access

  • Twin driver bench seat with pivoting backrest and large internal storage

  • Bow cushion

HULL, DECK AND TUBES

  •  470mm 1100 DTEX DuPont Hypalon Tubes

  • 5 x separate air compartments complete with pressure relief valves

  • Heavy dutyl side rub strips

  • Aluminium keel protection

  • Anchor rope bow protection

  • Hull built to ISO 9001 certification

  • Isothalic resin coated hull with Gelcoat finish

  • Non slip deck with large flow drains

  • Internal taped seems

  • Forward and rear stainless steel towing and launching eyes

  • Pump and repair kit

ELECTRICAL AND EQUIPMENT

  •  Premium Marine Pro Battery and battery box

  • BEP switch panel with spares

  • LED Navigation lights

  • Electrical circuits all fuse protected

OPTIONS (many included in base price)

  • Waterski towing eyes - included

  • 3 point crane lifting eyes - included

  • Sea star Premium Hydraulic Steering

  • Galvanised Multiroller trailer with winch and LED lights

 TECHNICAL SPECIFICATIONS

Overall Length – 5050mm

Width (beam) –  2200mm

Internal Beam Max – 1150mm

Hull Deadrise (degrees) - 20

Recommended Hp – 60-70hp

Max Hp – 70hp

Engine Length – Single and Twin Install – 20” (508mm)

Standard Fuel Capacity – 25L (plus under floor storage)

Bare Hull Weight – 335kg

Total Weight Complete (estimate) – 600kg

Max Passengers - 8

Total Air Compartments – 5

Tube Diameter – 470mm

Tube Material – 1100 Dtex HYPERLON
